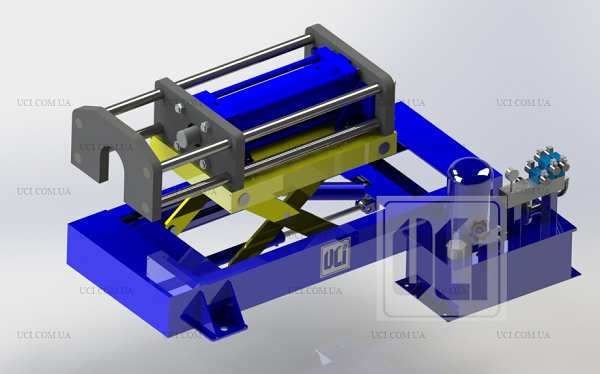

The Bearing Puller press PDP 100 is designed to dismantle or install tapered roller bearings and railway bearing sets from the journals of locomotives, passenger and freight cars wheelsets.
Equipment composition
- The Bearing Puller press PDP 100
- Removal or installer devices as interfaces for the press PDP 100
- Adaptor kit to install or remove bearing.TECHNICAL SPECIFICATIONS
|
Parameter name |
Value |
|
Maximum Pulling force, KN |
900 |
|
Cylinder stroke, mm |
500 |
|
Cylinder pressure, bar |
630 |
|
Working speed, mm / sec |
3,6 |
|
Height of lifting of the axis of the hydraulic cylinder, mm |
500…1100 |
|
Temperature range, Cº |
+5C…+60 |
|
Power supply |
3ph, 380V, 60Hz |
|
Power, kW |
4,0 |
|
Dimensions (WxLxH), mm |
2450×1050×1150 |
|
Weight, kg |
440 |
*At the request of the customer, it is possible to change the characteristics and parameters of the press
