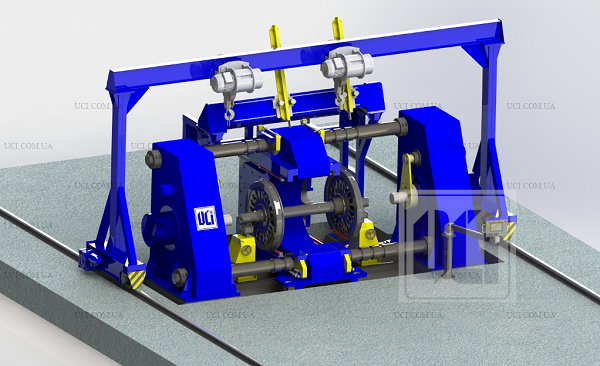

Wheel-set and its components are loaded and unloaded with the Gantry Crane.
The press PDRZ-400 is using CNC controls. The press’ controls are intuitive for efficient and safe operation.
Measurement system and Axle centering system are automatic
The press is fitted with computer recording unit to register the mounting pressure.
Advantages of the press PDRZ-400
- fully automated process of mount and dismount of wheelsets;
- the highest measurement accuracy and process repeatability;
- the highest productivity;
- lack of human errors;
- work with any types of wheelsets;
- control of the process during its execution;
- the possibility of integration into an automatic line for the formation of wheelsets.
TECHNICAL SPECIFICATIONS
| Parameter name | Value |
|
Nominal press force, kN |
4000 |
| Maximum wheel diameter, mm | 1200 |
| Maximum Wheelset weight, kg | 3150 |
| Maximum wheelset Length, mm | 2300 |
|
Maximum Axle diameter, mm |
230 |
| Track Gauge, mm | 1435 |
|
Maximum stroke of the plunger working cylinder, mm |
850 |
| Ram travel, mm | 650 |
| Ram fitting speed, mm/sec | 0,5...5 |
|
Speed of working cylinder plunger, mm/sec |
50
1...4,5
70
|
|
The speed of movement of the support beam, mm/sec |
50 |
| Compressed air pressure, Bar | 8 |
|
Operating pressure, MPa |
25 |
| Temperature range, Cº | +5...+60 |
| Power supply | 3ph; 380V |
| Installed power, kW | 60 |
| Overall dimensions, (LхWхH), mm | 7320x3100x2300 |
| Mass of press, kg | 28200 |
| Production capacity for mount all the components of wheels, min. | upto 30 |
| Accuracy, mm | 0,5 |
