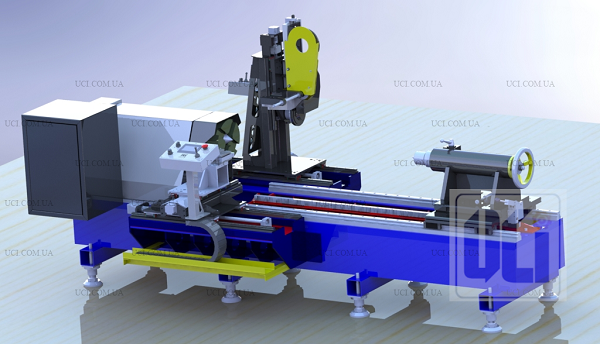

The CNC armature commutator repair machine VPK 01.01 is designed for armature commutator repair of DC traction motors, in particular traction motors of locomotives, namely for turning of armature commutators, undercutting and brush deburring in automatic and semi-automatic mode.
TECHNICAL SPECIFICATIONS
|
Parameter name |
Value |
|
Armature Weight up to, kg |
1360 |
|
Armature Diameter up to, mm |
609 |
|
Minimum Armature Diameter, mm |
200 |
|
Armature Length between center and Check up to, mm with Bed extension. |
1320 |
|
Commutator Diameter up to, mm |
508 |
|
Minimum Commutator Diameter, mm |
203 |
|
Commutator Length up to, mm |
300 |
|
Shaft Diameter up to, mm |
175 |
|
Minimum Shaft Diameter, mm |
44 |
|
Permissible angle of inclination of the insulating plates |
1°30′max |
|
Ascending speed, mm/sec |
3 ÷ 20 |
|
Cutter rotation speed, rpm |
1000 ÷ 4000 |
|
Power supply |
3ph, 380V, 60Hz |
|
Power, kW |
4,0 |
|
Dimensions (WxLxH), mm |
3100 х 2200 х 1550 |
|
Weight, kg |
1250 |
*At the request of the customer, it is possible to change the characteristics and parameters of the machine
