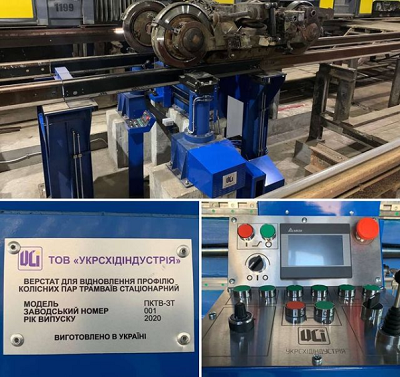

The machine model PKTS-3T is a special underfloor wheelset lathe with a support for turning trams wheel sets profile with diameter of wheel-sets on tread 650-720mm and gauge 1000mm (or any by customers request).
The design is involves the installation of the machine under the rails space.
The movable rails of the machine are a continuation of the depot track.
In accordance with its purpose, wheel lathe model PKTS-3T has the following turning features:
- Turning around the band profile of the wheelset;
- Turning of individual sections of the profile of the shroud to eliminate wheelset local defects.
Basic technical specifications
|
Gauge for basic machine, mm |
1000* |
|
Diameter of wheel-sets on tread, mm |
650-720 |
|
Range of profile widths, mm |
< 95 |
|
Max.cutting depth, mm |
2,0 |
|
Feed, mm/min |
0-40 |
|
Accelerated feed, mm/min |
2000 |
|
Nominal cutting speed, m/min |
80 |
|
The lifting capacity of the wheelset lifting devices, t |
2x12 |
|
Electrical network parameters (machine connection) |
380V (50Hz) |
|
Machine dimensions: - Length, mm - width, mm - heigh, mm |
4500 2150 1850 |
|
Weight of the machine, kg |
2700 |
|
Profile deviation (from nominal), mm |
< 0,2 |
|
Difference between diameters of the wheels of given bogie, mm |
< 0,2 |
|
Surface finish (dependent on feed rate) |
Ra< 20 |
