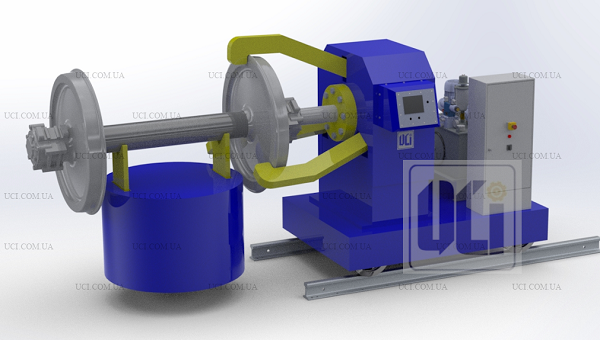

The Wheel Puller press PDK-100 is designed to dismantle wheelsfrom of locomotives, passenger and freight cars wheelsets.
Equipment composition
- The Wheel Puller press PDK-100
- High pressure oil pump
- Wheel kit lifting and rotating equipment by 180 degrees
Press PDK-100 consist from the following parts: a mobile platform, a hydraulic power cylinder, wheel grippers, a control panel, a pumping station.
The press is equipped with a high-pressure pump for pumping oil into the wheel bore and axleto creating an oil film, this allows the wheels to be dismantled with much less effort and without damaging the wheel axle.
The press PDK-100 is also equipped with a Lifting and Rotating Equipment for lifting and turning the wheelset by 180 ° during dismantling of wheels.
The Lifting and Rotating Equipment do not need special foundation.
TECHNICAL SPECIFICATIONS
|
Parameter name |
Value |
|
Maximum Pulling force, KN |
900 |
|
Cylinder stroke, mm |
500 |
|
Cylinder pressure, bar |
630 |
|
Cylinder Height, mm |
900 |
|
High pressure oil pump, bar |
3000 |
|
Working speed, mm / sec |
3,6 |
|
Wheelset lifting height, mm |
200 |
| Wheelset Rotation angle | 180 |
|
Compressed air pressure in the pneumatic system, MPa |
6 |
|
Air consumption in the pneumatic control system, m3 / hour |
0,2 |
|
Temperature range, Cº |
+5C…+60 |
|
Power supply |
3ph, 380V, 60Hz |
|
Power, kW |
4,0 |
|
The press dimensions (WxLxH), mm |
1400×4400×1900 |
|
The Lifting and Rotating Equipment Dimensions (WxLxH), mm |
1480х1400х670 |
|
Total Weight, kg |
1320 |
|
Location |
Indoors |
