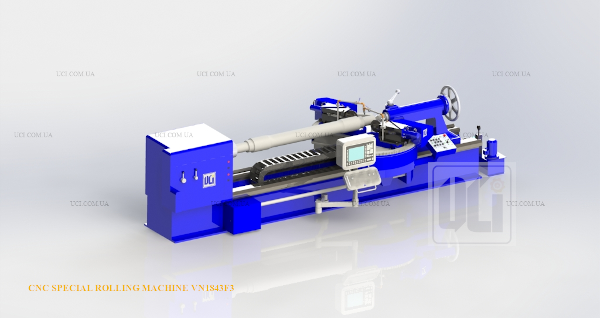

CNC special rolling machine model VN1843F3 is designed for rolling (roll-hardening) journals, pre-hub mounting, hub mounting, middle, the outer journals, fillets and axle portions of carriage and locomotive axles of wheel sets.
MAIN TECHNICAL SPECIFICATIONS
|
Parameter name |
Value |
|
Centers height, mm |
320 |
|
The greatest length of the machinedaxis in the centers, mm |
2600 |
|
Diameter of journal to be machined, mm |
150 и 240 |
|
Number of gearbox steps, pcs |
6 |
|
Axis rotation speed, rpm |
58…335 |
|
Number of carriages (double type), pc. |
3 |
|
Range of working feeds, mm / min |
12…1000 |
|
Main drive power, kW |
11 |
|
Machine dimensions, (LxWxH), mm |
5600x2900x1970 |
|
Weight of the machine, kg |
9300 |
