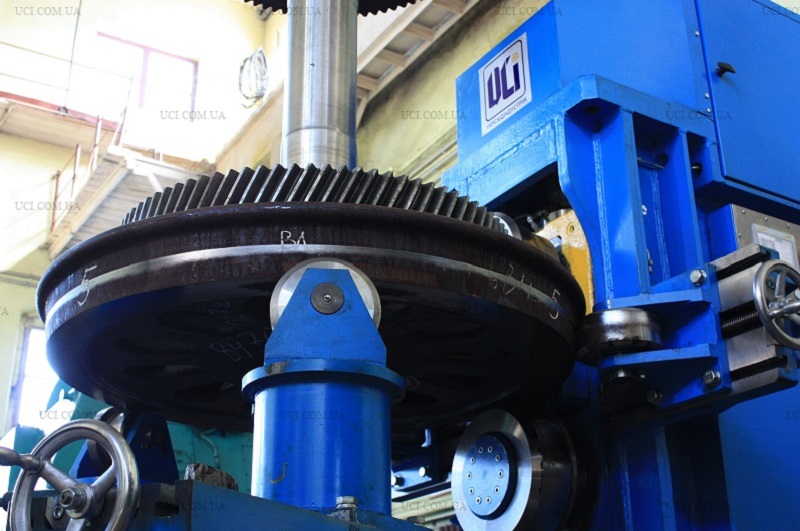

Gibson ring rolling machine PB7728 is for rolling of safety rings of tired wheels of railway vehicles.
The machine is designed to swage the bursts of wheel tyre down to fasten the retaining ring.
The machine can be used for forming of tired wheels and wheelsets with diameter from 500 mm to 1700 mm for locomotives and other railway vehicles.
The machine can be used for forming of tired wheels and wheelsets with diameter from 500 mm to 1700 mm for locomotives and other railway vehicles.
|
Parameter name |
Value |
|
Nominal machine force on roll, kN |
600 |
|
Wheel set diameter, mm |
500 - 1700 |
|
Tire width, mm |
130-150 |
|
Tire thickness, mm |
70-95 |
|
Max. rolling speed, m/min |
11 |
|
Roll speed, mm/sec: -idle stroke -working stroke -back stroke |
8.3 2.4 16.2 |
|
Power supply, V/Hz |
380/50 |
|
Rolls drive power, kW |
9,2 |
|
Max slide stroke, mm |
50 |
|
Max whhel set weight, t |
5 |
|
Machine dimensions (LxWxH), mm |
3825х1960х2240 |
|
Machine weight, kg |
5800 |
*The machine parameters can be changed at the request of the customer.
