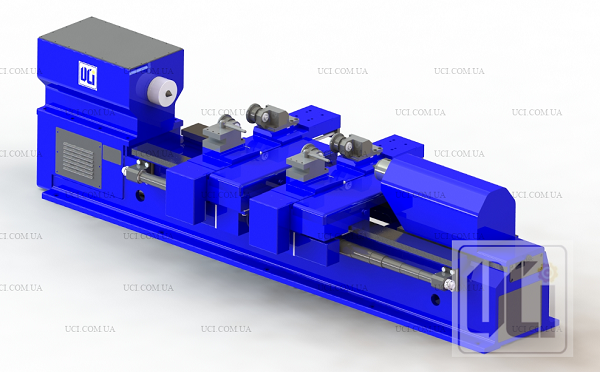

Special-purpose turning and rolling machine VN1842 is designed for turning and rolling (roll-hardening) journals, pre-hub mounting and hub mounting axle portions of carriage and locomotive axles of wheel sets.
MAIN TECHNICAL SPECIFICATIONS
|
Parameter name |
Value |
|
Centers height, mm |
320 |
|
Distance between centers, mm |
2700 |
|
Diameter of journal to be machined, mm |
90…240 |
|
The greatest mass of the axis machinedin the centers, kg |
600 |
|
Number of carriages (double type), pc. |
2 |
|
Longitudinal feed range, mm/min |
56…162 |
|
Axis rotation speed, rpm |
58…235 |
|
Main drive power, kW |
11 |
|
Machine dimensions, (LxWxH), mm |
5100x2900x1970 |
|
Weight of the machine, kg |
10430 |
