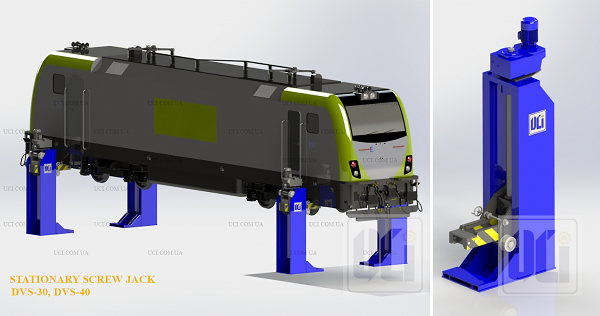

Stationary screw jacks for railway transport are designed to lift locomotives, electric locomotives, diesel locomotives, all types of railway freight and passenger cars, cranes on railway tracks, motor railways, railcars, platforms, tanks, gondola cars, including synchronised lifting of high-speed and electric trains.
MAIN TECHNICAL SPECIFICATIONS
|
Parameter name |
DVS-30 |
DVS-40 |
|
Lifting capacity, t |
30 |
40 |
|
Total jack capacity, t |
120 |
160 |
|
Lifting speed, mm/min |
172 |
172 |
|
Maximum lifting height, mm |
1960 |
2600 |
|
Retractable trunk stroke from the axis of the screw, мм: minimum |
|
750 |
|
Motor power, kW |
5,5 (7,5) |
7,5 |
|
Dimensions, mm |
1500х1300х2550 |
1500х1300х3850 |
|
Jack / Installation Weight, kg |
9200 |
9700 |
