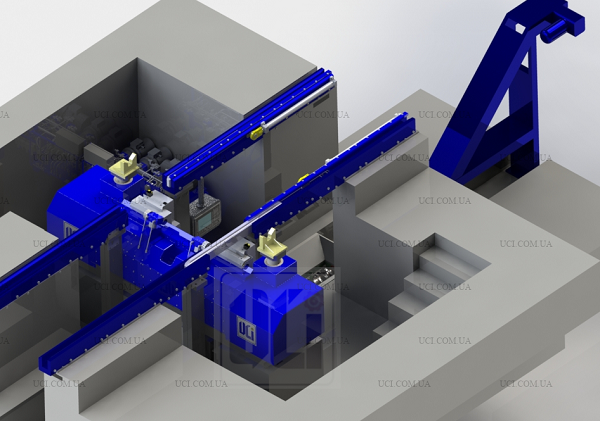

The machine model PKTS-3 is a special underfloor wheelset lathe with a support for turning railway wheel sets profile on electric locomotives with diameter of wheel-sets on tread 950-1250mm and gauge1435, 1520 mm.
The design is involves the installation of the machine under the rails space. The movable rails of the machine are a continuation of the depot track.
In accordance with its purpose, wheel lathe model PKTS-3 has the following turning features:
- Turning around the band profile of the wheelset;
- Turning of individual sections of the profile of the shroud to eliminate wheelset
local defects.

MAIN TECHNICAL SPECIFICATIONS

Gauge for basic machine, mm	1520 (1524)
Diameter of wheel-sets on tread, mm	950-1250
Range of profile widths, mm	< 143
The distance of the wheelset between the tires of the wheels, mm	1437-1443
Support longitudinal stroke, mm	1740
Support cross stroke, mm	200
Machine dimensions: - Length, mm - width, mm - heigh, mm	6900 5800 2300
Weight of the machine, kg	7000



Speed of movement

Jack, mm/min	1000
Locking clips, mm/min	1000
Movable rails, mm/min	3000
Rapid support moving, mm/min - longitudinal - cross	2500 2500



Turning mode

Nominal cutting depth, mm	2,5
Max.cutting depth, mm	6
Feed, mm/min	0-35
Maindrive (whhel set speed), (stepless), rpm	0-25
