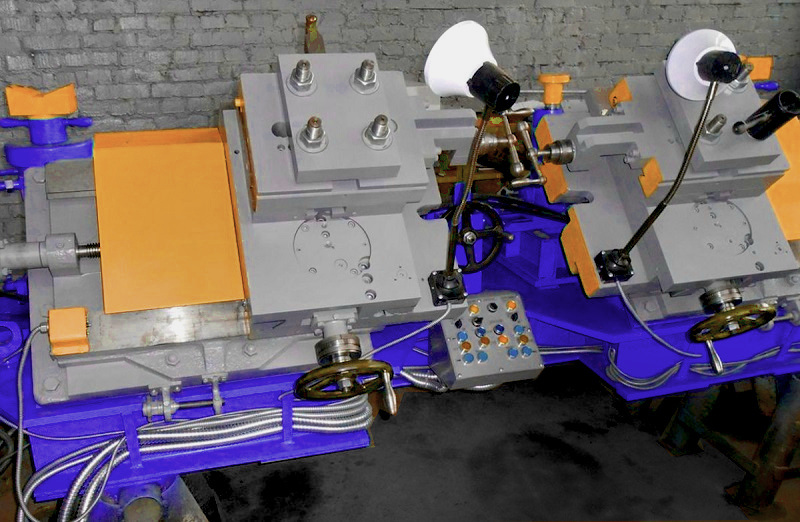

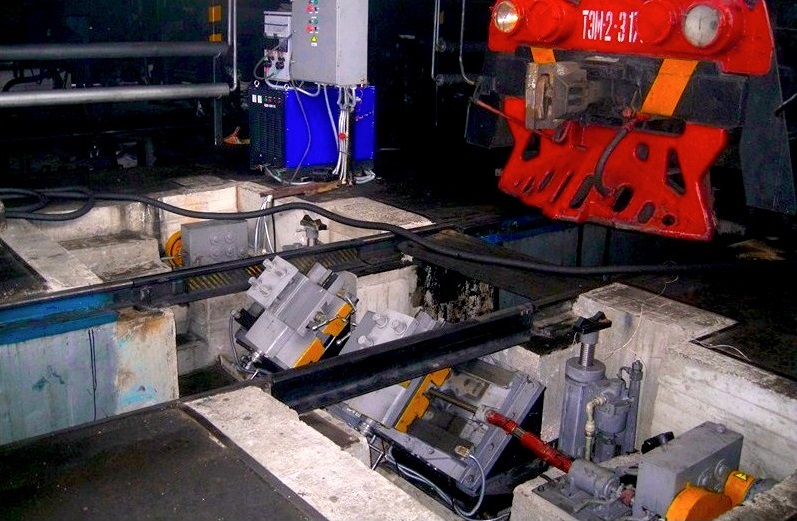

The conventional underfloor wheel lathe PKTS-2 is designed for turning railway wheel sets profile on the railcars, electric locomotives, diesel locomotives.
The conventional underfloor wheel lathe consist from the following parts:
- Machine bad

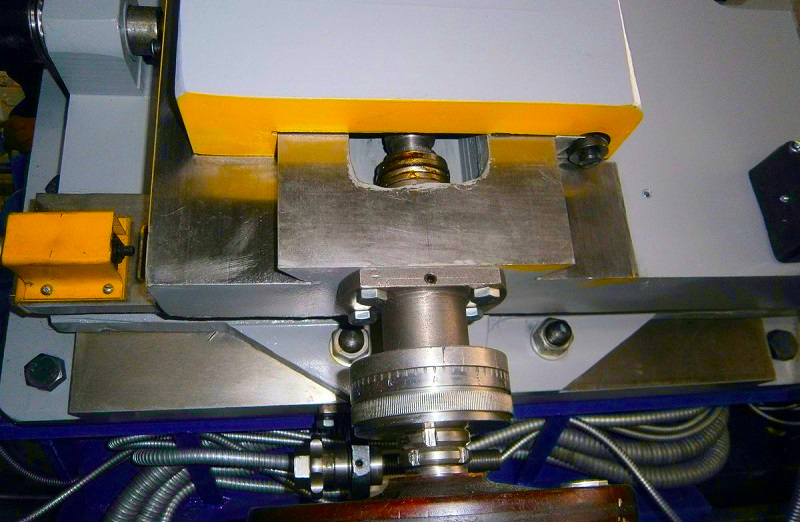

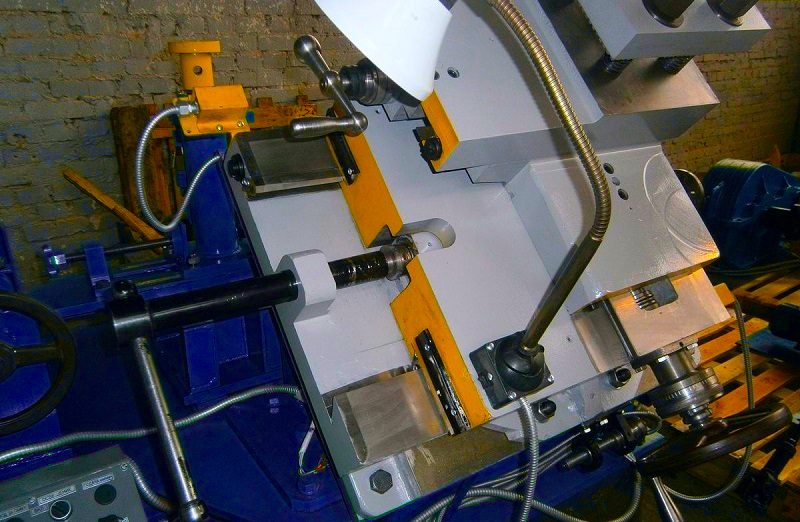

- left and right support for longitudinal and cross feeds
- hydraulic jacks to lift and hold the wheelset
- wheelset rotation drive (for wheelsets without an electric traction motor)
- electric cabinet
Advantages of the machine
- Simple design of the machine and its ease of maintenance
- Low maintenance
- Not a high price and quick payback of the machine
Basic specifications
|
Highest cutting speed, m/min |
80 |
|
Support feed, mm/rev |
1,4; 1,5; 1,6; 1,7 |
|
Maximum cutting depth, mm |
4 |
|
Gauge for basic machine, mm |
1520 (1524) |
|
Diameter of wheel-sets on tread |
650…1250 |
|
Wheel-set length, mm |
1850…2750 |
|
Range of profile widths, mm |
80…143 |
|
Maximum capacity of jacks, t |
25 |
|
Profile deviation (from nominal), mm |
< 0,2 |
|
Inconsistency wheel diameter in cross-section rolling circle (after turning), mm |
< 0,2 |
|
Difference between diameters of the wheels of given bogie mm |
< 0,2 |
|
Surface finish (dependent on feed rate) |
Ra< 20 |
|
Machine dimensions (without additional equipment), mm: |
|
|
- Length |
2910 |
|
- width |
960 |
|
- height |
720 |
|
The weight of the machine and the equipment, kg |
4700 |
